การ์ดจอ ASUS ROG-STRIX-RTX3090-O24G-GAMING 24GB GDDR6X 384-bit

แบรนด์: ASUS
SKU: 4718017928618
NVIDIA Ampere Streaming Multiprocessors: หน่วยประมวลผลใหม่สำหรับ GPU มาพร้อมประสิทธิภาพที่รวดเร็วในโลกของ Ampere SM มาพร้อมความแรงที่เพิ่มขึ้นเป็น 2 เท่า พร้อมการจัดการพลังงานที่ดีกว่าเดิม
฿44,900
฿72,900
รับประกัน 3 ปี
จำนวน
สินค้าจะพร้อมจำหน่ายเร็วๆ นี้ สามารถดูสินค้าที่สาขาหรือ ติดต่อ BaNANA เพื่อเช็กสินค้า
  • ภาพรวม
  • คุณสมบัติ
  • รายละเอียดสินค้า

คุณสมบัติสินค้า

Chipset Manufacturer NVIDIA GeForce
GPU GeForce RTX 3090
Core Clock N/A
Boost Clock 1890 MHz
Stream Processors 10496 Units
Memory Clock 19.5 Gbps
Memory Size 24 GB
Memory Interface 384-bit
Memory Type GDDR6X
Interface PCIe 4.0 x16
OpenGL 4.6
HDMI 2x HDMI 2.1
Display Port 3x DisplayPort 1.4a
DVI No
CrossFireX SLI Support N/A
Cooler 3 Fan
Dual Link DVI Support No
System Requirements PSU 850 W
Power Connector 3x 8-pin Power Connector
Warranty 3 Year + 1 Year (register)

ASUS VGA ROG-STRIX-RTX3090-O24G-GAMING 24GB GDDR6X 384-bit


ROG-STRIX-RTX3090-O24G-GAMING

ROG Strix GeForce RTX™ 3090 buffed-up design with chart-topping thermal performance.

  • NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world´s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
  • 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
  • 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
  • Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
  • 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
  • Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

TAKE FLIGHT

From top to bottom, the ROG Strix GeForce RTX™ 3090 has been radically improved to accommodate the impressive new Ampere chips from NVIDIA and to deliver the next wave of gaming performance innovation to the market. A fresh design and more metal surrounds a grouping of Axial-tech fans. Last gen's uniform fan layout has been usurped by a new rotation scheme and specialized roles for central and auxiliary fans. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. You've been waiting for the latest and greatest in GPU design - and this is it.

AXIAL-TECH UPGRADES

Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.


MAXCONTACT

To get heat up off the die and into the heatsink array to benefit from the new fan design requires special attention. We use a manufacturing process that polishes the surface of the heat spreader to improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for improved thermal transfer.


2.9-SLOT DESIGN

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.


FRESH SHROUD

In addition to under-the-hood design changes, the ROG Strix features a new face with metal accents that mirror the design aesthetic of ROG and ROG Strix motherboards. Mixing surface textures and materials make a statement when vertically mounted and lit by chassis LEDs. For those who prefer a sleeker, more subtle look, the greyscale colorway allows it to seamlessly blend into the build.

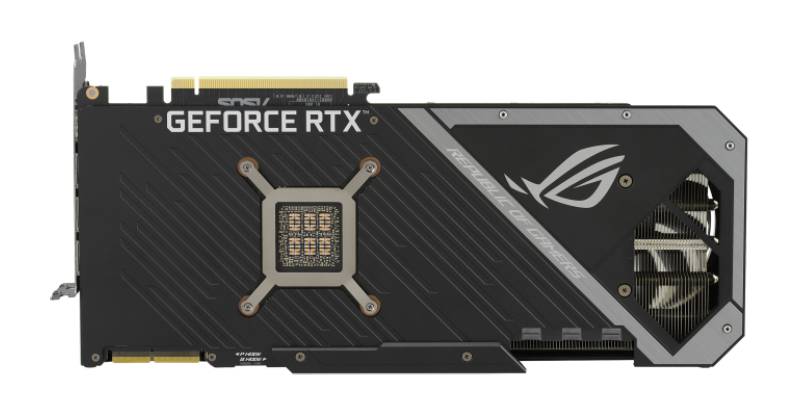

IT'S COOLER OUT BACK

Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU's circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card's default behavior without software.


FUNCTIONAL FRONT

Careful attention has been paid to the front of the GPU, as it's the most visible part of the card in typical configurations. A new addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3090, three 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix's reinforced metal frame is also visible here, adding a literal layer of durability.


GPU TWEAK II

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.


ที่มา :: www.asus.com
